SPECIFICATIONS

is_customized: Yes

Weight: 6.3 kg / 13.9 lb

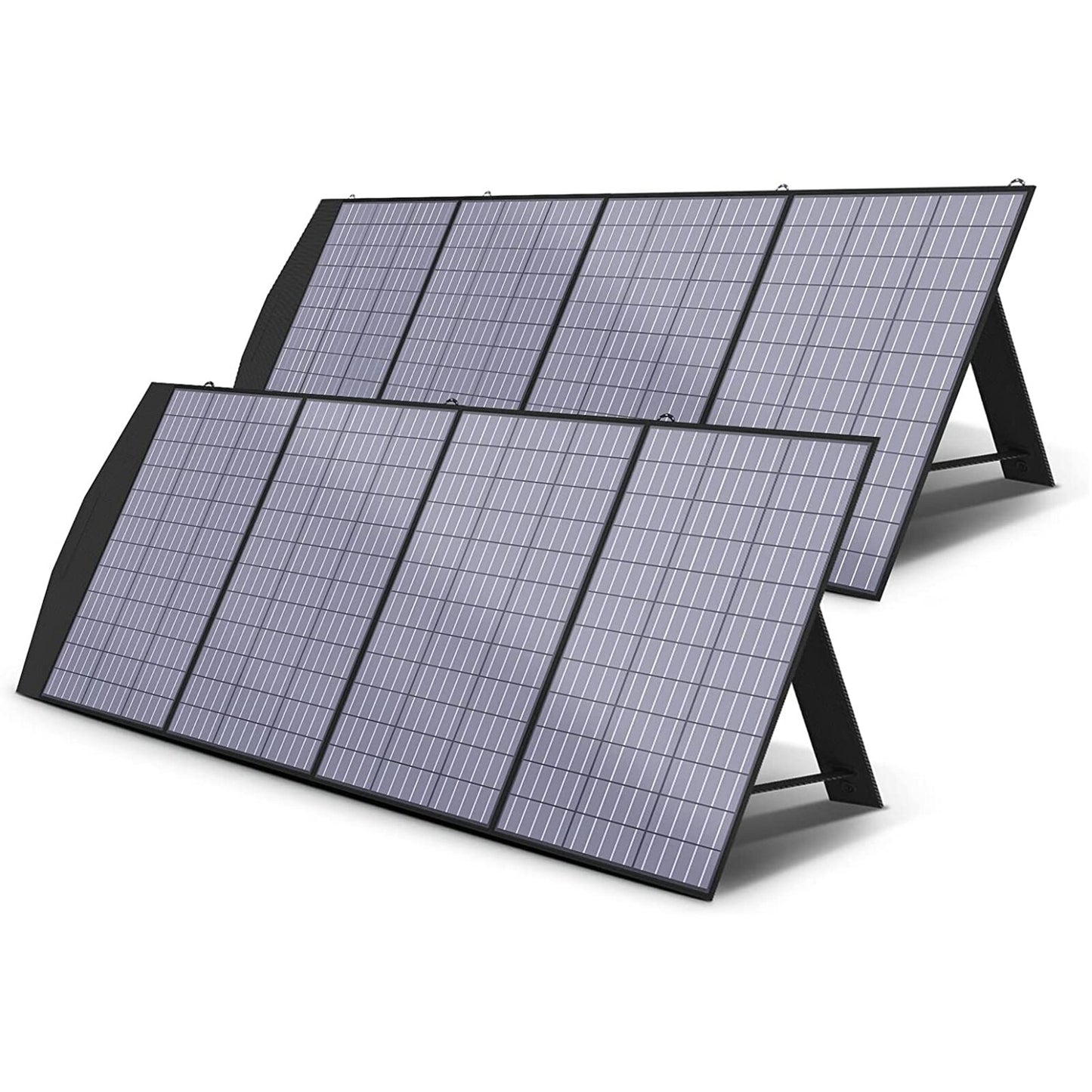

Type: Solar Panel

Solar Energy Conversion Rate: 19%-22%

Size: 25.59 x 20.28 x 0.39 inches; 16.5 Pounds

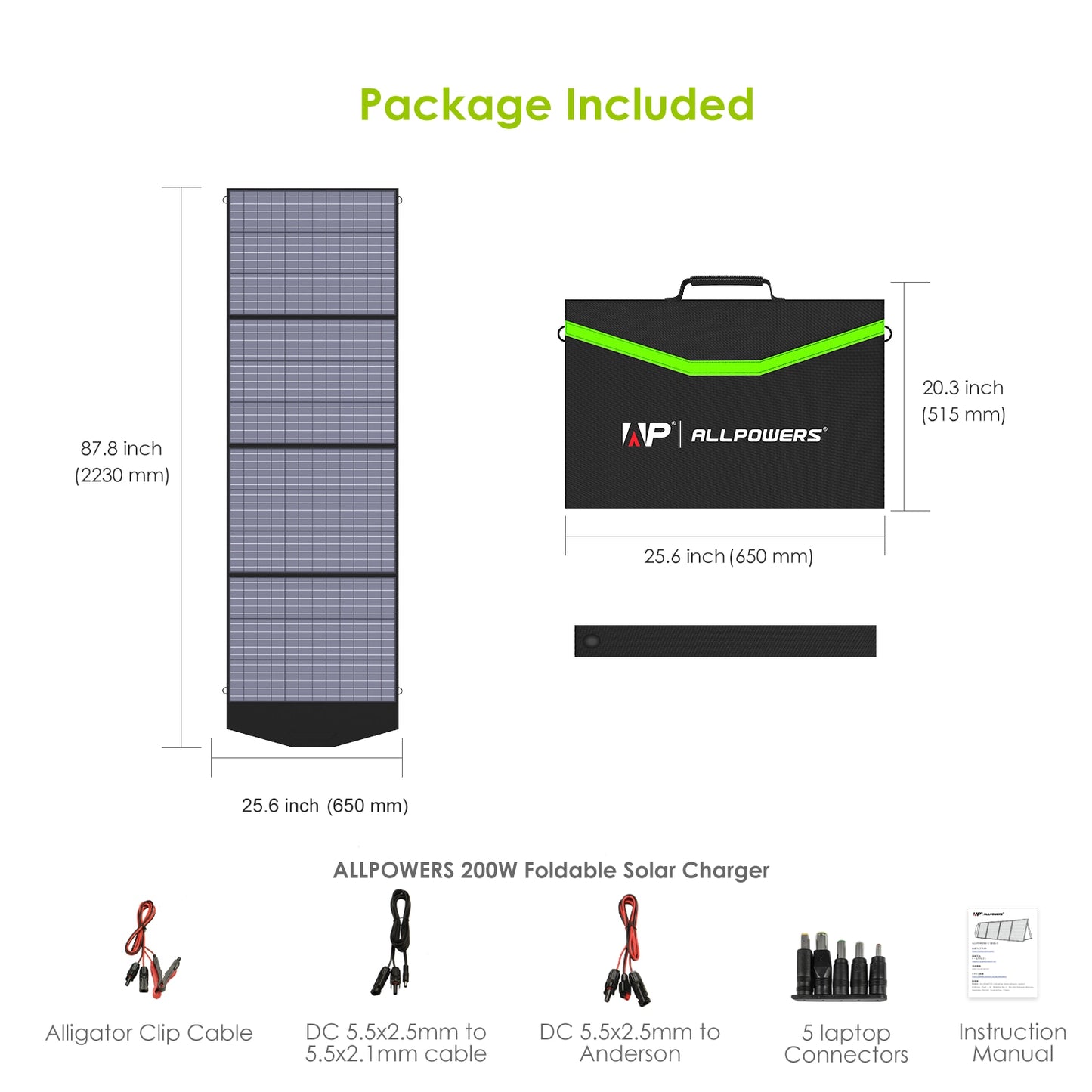

Size: 2230 x 650 mm(87.8 x 25.6 in) / 650 x 515 mm(25.6 x 20.3 in)

Short Circuit Current (IOC): 12 A

Peak Power: 200W ± 5%

Origin: CN(Origin)

Operating Temperature: -20 ~ 60 ℃/ -4 ~140 ℉

Open Circuit Voltage (Voc): 22.2V

Number of Panels: 4

Number of Cells: 4

Nominal Capacity: 200W

Model Number: AP-SP-033-BLA

Maximum Power Voltage (Vmp): 18 V

Maximum Power Current (Imp): 11A

Max. Power: 200W

Material: Polycrystalline Silicon

Foldable Solar Panel: Yes

Flexible Solar Panel: No

Certification: CE

Certification: pse

Certification: UL

Certification: FCC

Brand Name: ALLPOWERS

All technical data at standard test condition: E=1000W/m² TC=25℃ AM=1.5
